| Type |
The capacity |
| Function |
DUAL TIMER |
| Rating Voltage |
220VAC, 110VAC, 12VDC,
24VDC, 110VDC |
| Contact form |
ON TIME |
A : 1a |
| B : 1a |
| Contact capacity |
250VAC, 3A |
| The range of frequency |
50/60Hz |
| Repetition error |
¡¾0.04% |
| Temperature error |
¡¾0.025% |
| Voltage error |
¡¾0.02% |
| SET error |
¡¾0.02% |
| Withstand voltage |
AC 2000V, 1minute(Between charging metal part and non-charging metal part) |
| The anti-noise |
(Burst Generator Pulse range 10§Á) 2kv |
| Insulation resistance |
Over 100M¥Ø(DC500V insulate resistance meter) |
| range of used temperature |
-10¡É ~ +50¡É |
| Ambient humidity |
40~85% RH |
| Power consumption |
1VA |

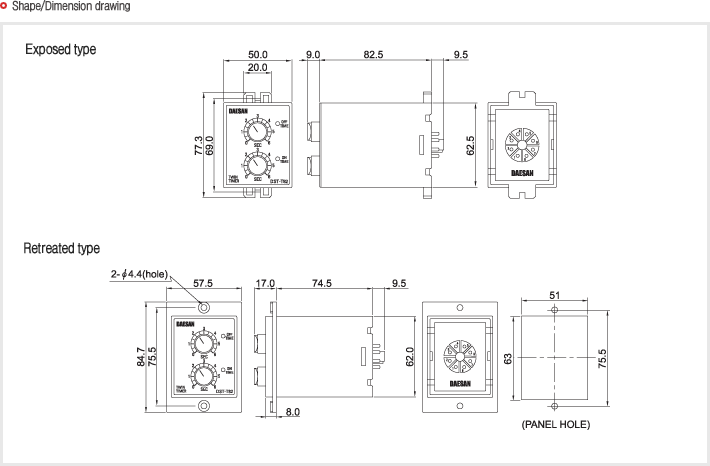

| Shape division |
Exposed, Retreated |

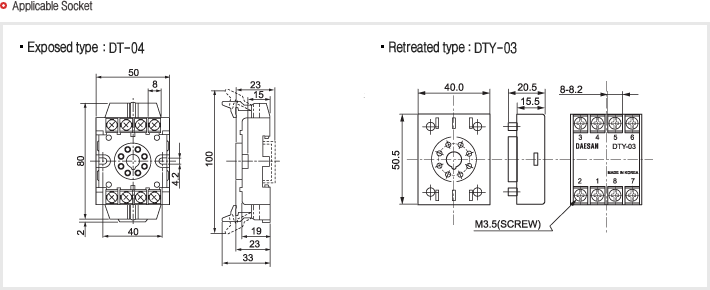

| Applicable socket |
Exposed type : DT-04 / Retreated type : DTY-03 |
|
| |
 |
|
ON TIME(A,B) |
Maximum time |
OFF TIME |
Maximum time |
| DST-96-30S/10S |
0.02 sec ~ 30 sec |
30 SEC |
0.02 sec ~ 10 sec |
10 SEC |
| DST-96-60S/10S |
0.02 sec ~ 60 sec |
60 SEC |
0.02 sec ~ 10 sec |
10 SEC |
|
| |
 |
| |
 |
| |
 |
| |
 |
|
