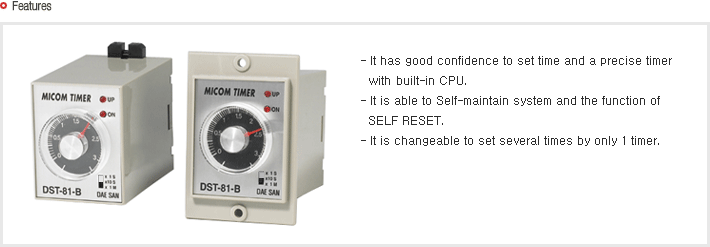

| Type |
The capacity |
| Function |
MULTI TIMER |
| Rating Voltage |
110V/220VAC
12VDC,24VDC,110VDC |
110VAC, 220VAC
12VDC,24VDC,110VDC |

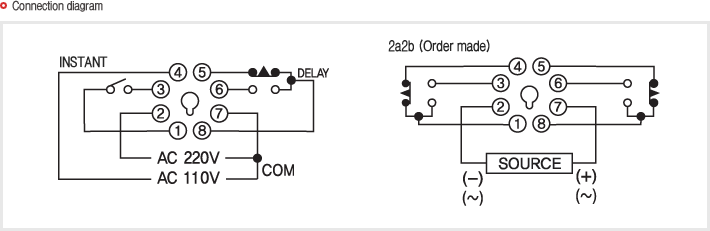

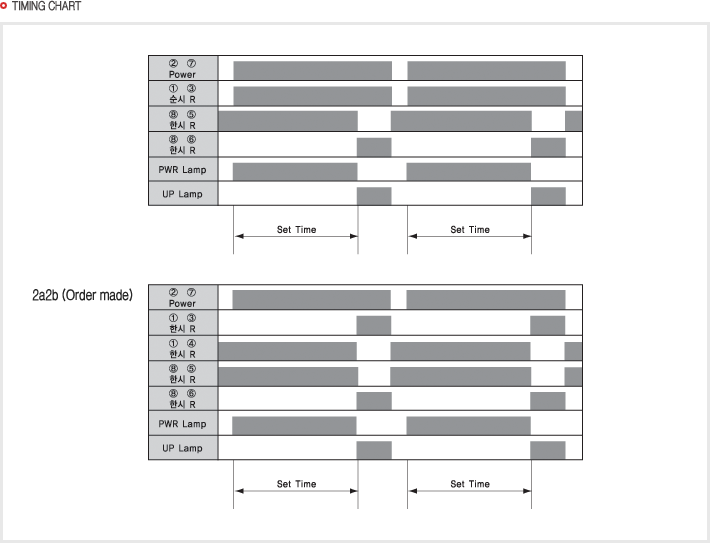

| Contact form |
순시 : 1a
한시 : 1a1b |
DST-81-W
한시 : 2a2b |
| Contact capacity |
250VAC, 3A |
| The range of frequency |
50/60Hz |
| Repetition error |
±0.04% |
| Temperature error |
±0.025% |
| Voltage error |
±0.02% |
| SET error |
±0.02% |
| Withstand voltage |
AC 2000V, 1minute(Between charging metal part and non-charging metal part) |
| The anti-noise |
(Burst Generator Pulse range 10㎲) 2kv |
| Insulation resistance |
Over 100MΩ(DC500V insulate resistance meter) |
| range of used temperature |
-10℃ ~ +50℃ |
| Ambient humidity |
40~85% RH |
| Power consumption |
0.7VA |

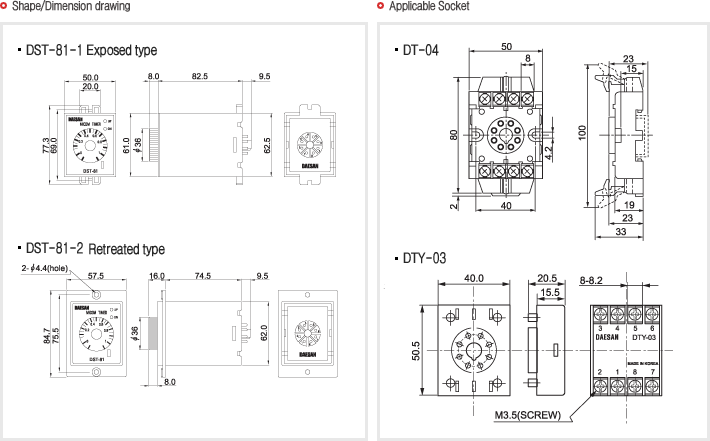

| Shape division |
Exposed, Retreated |
| Applicable socket |
Exposed type : DT-04 / Retreated type : DTY-03 |
|
| |
 |
|
STEP |
Maximum time |
Control time |
DST-81-1(Exposed)
DST-81-2(Retreated) |
A |
1 |
1 SEC |
0.02 sec ~ 1 sec |
| 2 |
10 SEC |
0.02 sec ~ 10 sec |
| 3 |
1 MIN |
0.02 sec ~ 1 min |
DST-81-1(Exposed)
DST-81-2(Retreated) |
B |
1 |
3 SEC |
0.02 sec ~ 3 sec |
| 2 |
30 SEC |
0.02 sec ~ 30 sec |
| 3 |
3 MIN |
0.02 sec ~ 3 min |
DST-81-1(Exposed)
DST-81-2(Retreated) |
C |
1 |
6 SEC |
0.02 sec ~ 6 sec |
| 2 |
60 SEC |
0.02 sec ~ 60 sec |
| 3 |
6 MIN |
0.02 sec ~ 6 min |
DST-81-1(Exposed)
DST-81-2(Retreated) |
D |
1 |
12 SEC |
0.02 sec ~ 12 sec |
| 2 |
2 MIN |
0.02 sec ~ 2 min |
| 3 |
12 MIN |
0.02 sec ~ 12 min |
DST-81-1(Exposed)
DST-81-2(Retreated) |
E |
1 |
3 MIN |
0.02 sec ~ 3 min |
| 2 |
30 MIN |
0.02 sec ~ 30 min |
| 3 |
3 HOR |
0.02 sec ~ 3 hor |
DST-81-1(Exposed)
DST-81-2(Retreated) |
F |
1 |
60 MIN |
0.02 sec ~ 60 min |
| 2 |
10 HOR |
0.02 sec ~ 10 hor |
DST-81-1(Exposed)
DST-81-2(Retreated) |
G |
1 |
3 HOR |
0.02 sec ~ 3 hor |
| 2 |
30 HOR |
0.02 sec ~ 30 hor |
|
| |
 |
| |
 |
| |
 |
|
