| Type |
The capacity |
| Function |

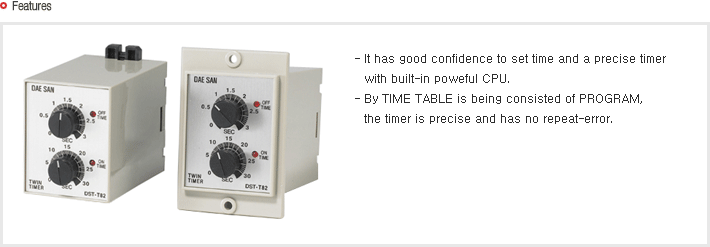

TWIN TIMER |
| Rating Voltage |
110V/220VAC
12VDC,24VDC,110VDC |
| Contact form |
¼ø½Ã |
- |
| Çѽà |
1a1b |
| Contact capacity |
250VAC, 3A |
| The range of frequency |
50/60Hz |
| Repetition error |
¡¾0.04% |
| Temperature error |
¡¾0.025% |
| Voltage error |
¡¾0.02% |
| SET error |
¡¾0.02% |
| Withstand voltage |
AC 2000V, 1minute(Between charging metal part and non-charging metal part) |
| The anti-noise |
(Burst Generator Pulse range 10§Á) 2kv |
| Insulation resistance |
Over 100M¥Ø(DC500V insulate resistance meter) |
| range of used temperature |
-10¡É ~ +50¡É |
| Ambient humidity |
40~85% RH |
| Power consumption |
1VA |

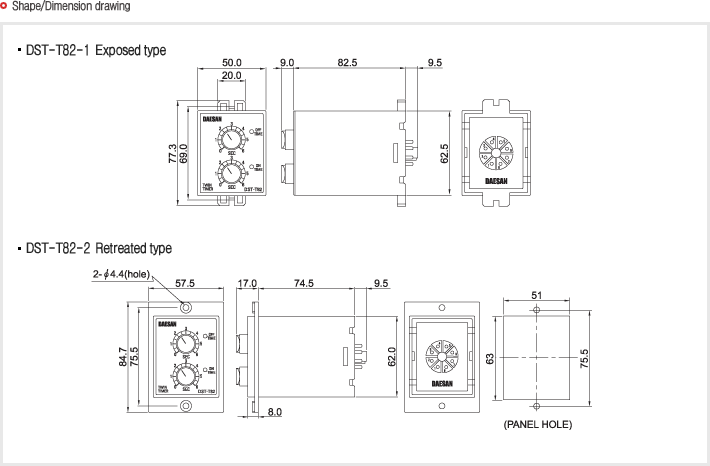

| Shape division |
Exposed, Retreated |

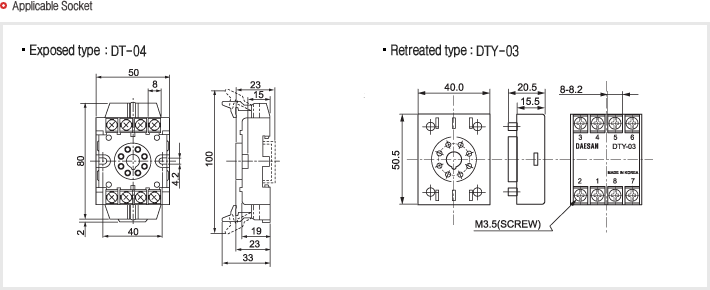

| Applicable socket |
Exposed type : DT-04 / Retreated type : DTY-03 |
|
| |
 |
|
1 |
3 |
6 |
10 |
30 |
60 |
| DST-T82 |
1 |
1/1 |
1/3 |
1/6 |
1/10 |
1/30 |
1/60 |
| 3 |
3/1 |
3/3 |
3/6 |
3/10 |
3/30 |
3/60 |
| 6 |
6/1 |
6/3 |
6/6 |
6/10 |
6/30 |
6/60 |
| 10 |
10/1 |
10/3 |
10/6 |
10/10 |
10/30 |
10/60 |
| 30 |
30/1 |
30/3 |
30/6 |
30/10 |
30/30 |
30/60 |
| 60 |
60/1 |
60/3 |
60/6 |
60/10 |
60/30 |
60/60 |
|
 |
| |
 |
| |
 |
| |
 |
| |
 |
|
