| Type |
The capacity |
| Function |

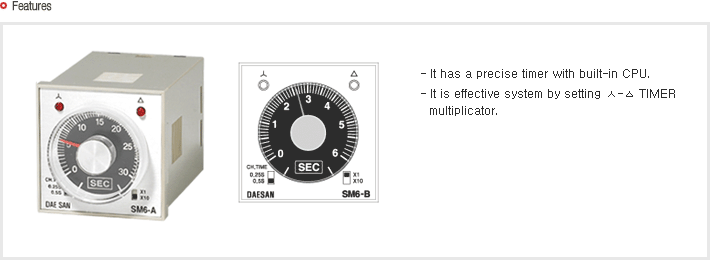

MULTI ¤µ-¤ï TIMER |
| Rating Voltage |
110VAC, 220VAC, 12VDC, 24VDC, 110VDC
|
| Voltage variable range |
AC : 90% ~ 110%
DC : 93% ~ 110% |
| Contact form |
¼ø½Ã |
1a |
| Çѽà |
¤µ - 1a
¤ï - 1a |
| The range of frequency |
60Hz |
| Contact capacity |
1A, 250VAC |
| Repetition error |
¡¾0.04% |
| Temperature error |
¡¾0.025% |
| Voltage error |
¡¾0.02% |
| SET error |
¡¾0.02% |
| range of used temperature |
-10¡É ~ +50¡É |
| Withstand voltage |
AC 2000V, 1minute(Between charging metal part and non-charging metal part) |
| The anti-noise |
(Burst Generator Pulse range 10§Á) 2kv |
| Insulation resistance |
Over 100M¥Ø(DC500V insulate resistance meter) |
| Ambient humidity |
40~85% RH |
| Power consumption |
1VA |

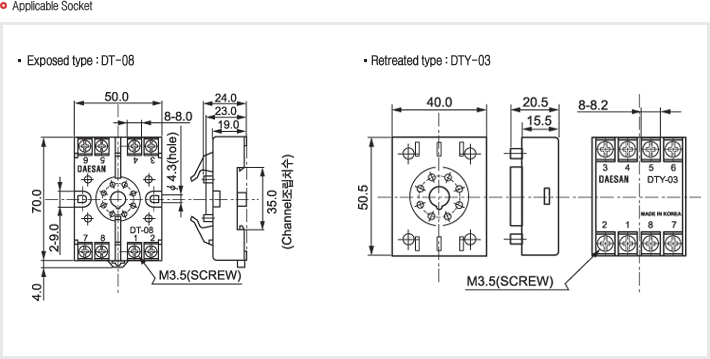

| Applicable socket |
Exposed type : DT-08 / Retreated type : DTY-03 |
|
| |
 |
|

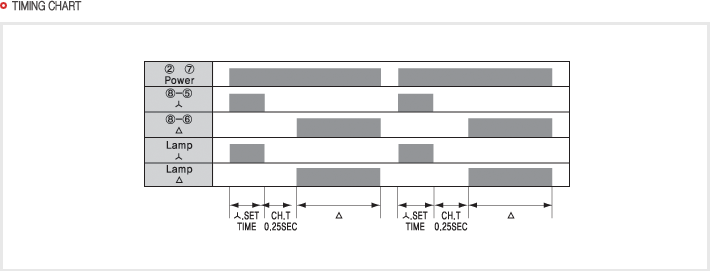

¤µ-¤ï TIME |
Change Time |
| A |
X 1 |
3 SEC |
1 Step |
0.25 SEC |
| X 10 |
30 SEC |
2 Step |
0.5 SEC |
| B |
X 1 |
6 SEC |
1 Step |
0.25 SEC |
| X 10 |
60 SEC |
2 Step |
0.5 SEC |
| C |
X 1 |
12 SEC |
1 Step |
0.25 SEC |
| X 10 |
120 SEC |
2 Step |
0.5 SEC |
¡Ø It is and order type about Change Time 0.1sec. |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
|
