Type The capacity

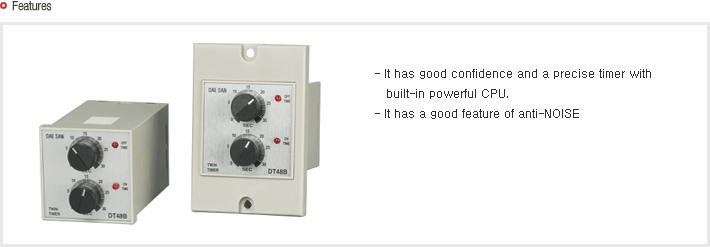

Function TWIN TIMER
Rating Voltage

110VAC / 220VAC
12VDC, 24VDC, 110VDC

Voltage variable range AC : 90% ~ 110%
DC : 93% ~ 110%
Contact form ¼ø½Ã -
Çѽà 1a1b
The range of frequency 50/60Hz
Contact capacity 3A, 250VAC
Repetition error ¡¾0.04%
Temperature error ¡¾0.025%
Voltage error ¡¾0.02%
SET error ¡¾0.02%
Range of used temperature -10¡É ~ +50¡É
Withstand voltage AC 2000V, 1minute(Between charging metal part and non-charging metal part)
The anti-noise (Burst Generator Pulse range 10§Á) 2kv
Insulation resistance Over 100M¥Ø(DC500V insulate resistance meter)
Ambient humidity 40~85% RH
Power consumption 0.95VA
Applicable socket Exposed type : DT-08 / Retreated type : DTY-03

1 3 6 10 30 60
DT-48B 1  1/1  1/3  1/6  1/10  1/30 1/60
3  3/1  3/3  3/6  3/10  3/30 3/60
6  6/1  6/3  6/6  6/10  6/30 6/60
10 10/1 10/3 10/6 10/10 10/30 10/60
30 30/1 30/3 30/6 30/10 30/30 30/60
60 60/1 60/3 60/6 60/10 60/30 60/60
