Type The capacity

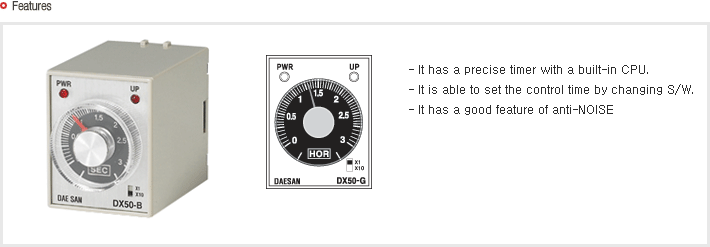

Function MICOM SUPER TIMER
Rating Voltage AC : 110V, 220V (50/60Hz)
DC 12V, DC 24V, DC110V
Voltage variable range AC : 90% ~ 100%
DC : 90% ~ 110%
Time for recover Under 50ms
Time error Repetition error : under ¡¾0.2%
Temperature error : under ¡¾0.2%
Voltage error : under ¡¾0.1%
SET error : under ¡¾0.2%

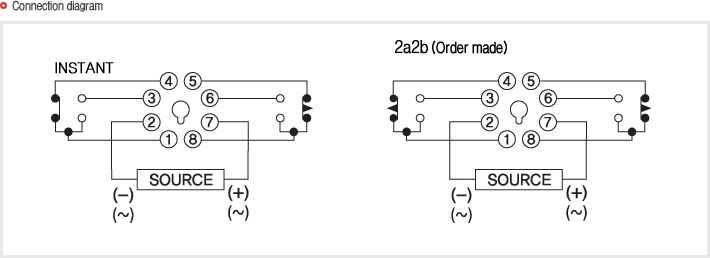

Contact form ¼ø½Ã : 1a1b / Çѽà : 1a1b
range of used temperature -10¡É ~ +50¡É
Contact capacity 3A. 250VAC
Power consumption AC : ¡Ö 1.2VA / DC : ¡Ö 1W
Withstand voltage AC 2000V, 1minute(Between charging metal part and non-charging metal part)
Insulation resistance Over 100M§Ù(DC500V insulate resistance meter)
The anti-noise (Burst Generator Pulse range 10§Á) 2kv


TYPE STEP Range of control time Maximum time TYPE STEP Range of control time Maximum time
DX50-A X 1  0.02 S ~  1 sec  1 SEC DX50-E X 1  0.02 S ~  3 min 3 MIN
X 10 0.02 S ~ 10 sec 10 SEC X 10 0.02 S ~ 30 min 30 MIN
DX50-B X 1  0.02 S ~  3 sec  3 SEC DX50-F X 1  0.02 S ~ 6 min  6 MIN
X 10 0.02 S ~ 30 sec 30 SEC X 10 0.02 S ~ 60 min 60 MIN
DX50-C X 1  0.02 S ~  6 sec  6 SEC DX50-G X 1  0.02 S ~ 3 hor  3 HOR
X 10 0.02 S ~ 60 sec 60 SEC X 10 0.02 S ~ 30 hor 30 HOR
DX50-D X 1  0.02 S ~  12 sec 12 SEC
X 10 0.02 S ~ 120 sec 2 MIN
